 SA 200 Series - Insert Bearings
 Normal Duty  -  Narrow Inner Race  -  Eccentric Collar Locking

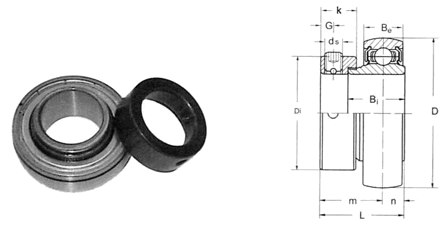

  Dimensions        inch SA Deminsional Information
Bearing
Number
Shaft
Dia.
D L Bi Be n m Di K G ds
SA 201-8 1/2" 1-9/16"
40mm
1-1/8" 3/4" 15/32" 0.236 57-64" 1-3/16" 17/32" 0.189 1/4"-28
UNF
$5.60
SA 201-8 Insert Bearing
SA 202-10 5/8"
$5.60
SA 202-10 Insert Bearing
SA 204-12 3/4" 1-27/32"
47mm
1-1/4" 27/32" 9/16" 9/32" 15/16" 1-19/64" 17/32" 0.189 1/4"-28
UNF
$6.25
SA 204-12 Insert Bearing
SA 205-14 7/8" 2-1/16"
52mm
1-1/4" 27/32" 19/32" 0.295 59/64" 1-1/2" 17/32" 0.189 1/4"-28
UNF
$6.70
SA 205-14 Insert Bearing
SA 205-15 15/16"
$6.70
SA 205-15 Insert Bearing
SA 205-16 1"
$6.70
SA 205-16 Insert Bearing
SA 206-17 1-1/16" 2-7/16"
62mm
1-13/32" 15/16" 5/8" 5/16" 1-3/32" 1-3/4" 5/8" 0.236 1/4"-28
UNF
$8.00
SA 206-17 Insert Bearing
SA 206-18 1-1/8"
$8.00
SA 206-18 Insert Bearing
SA 206-19 1-3/16"
$8.00
SA 206-19 Insert Bearing
SA 206-20 1-1/4"
$8.00
SA 206-20 Insert Bearing
SA 207-20 1-1/4" 2-27/32"
72mm
1-17/32" 1" 21/32" 0.335 1-13/64" 2-3/16" 11/16" 0.268 5/16"-24
UNF
$10.25
SA 207-20 Insert Bearing
SA 207-21 1-5/16"
$10.25
SA 207-21 Insert Bearing
SA 207-22 1-3/8"
$10.25
SA 207-22 Insert Bearing
SA 207-23 1-7/16"
$10.25
SA 207-23 Insert Bearing
SA 208-24 1-1/2" 3-5/32"
80mm
1-23/32" 1-3/16" 23/32" 11/32" 1-23/64" 2-3/8" 23/32" 0.268 5/16"-24
UNF
$12.50
SA 208-24 Insert Bearing
SA 208-25 1-9/16"
$12.50
SA 208-25 Insert Bearing
SA 209-26 1-5/8" 3-11/32"
85mm
1-23/32" 1-3/16" 3/4" 3/8" 1-11/32" 2-1/2" 23/32" 0.268 5/16"-24
UNF
$14.50
SA 209-26 Insert Bearing
SA 209-27 1-11/16"
$14.50
SA 209-27 Insert Bearing
SA 209-28 1-3/4"
$16.25
SA 209-28 Insert Bearing
SA 210-30 1-7/8" 3-35/64"
90mm
1-23/32" 1-3/16" 25/32" 13/32" 1-5/16" 2-3/4" 23/32" 0.268 3/8"-24
UNF
$16.25
SA 210-30 Insert Bearing
SA 210-31 1-15/16"
$16.25
SA 210-31 Insert Bearing
Dimensional Download   SA.pdf
