 HC 200 Series - Insert Bearings
 Normal Duty  -  Wide Inner Race  -  Eccentric Collar Locking

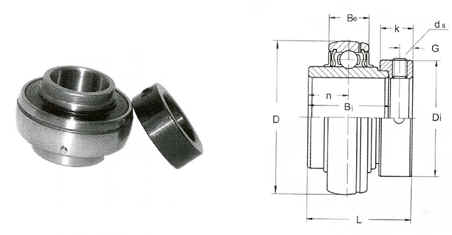

  Dimensions        inch / metric HC Deminsional Information
Bearing
Number
Shaft
Dia.
D L Bi Be n Di K G ds
HC 201-8 1/2" 1-27/32"
47mm
1-23/32" 1-11/32" 21/32" 21/32" 1-5/16 17/32" 0.197 1/4"-28
UNF
$6.00
HC 201-8 Insert Bearing
HC 202-10 5/8"
$6.00
HC 202-10 Insert Bearing
HC 204-12 3/4"
$6.50
HC 204-12 Insert Bearing
HC 205-14 7/8" 2-1/16"
52mm
1-3/4" 1-3/8" 21/32" 11/16" 1-1/2" 17/32" 0.197 1/4"-28
UNF
$7.80
HC 205-14 Insert Bearing
HC 205-15 15/16"
$7.80
HC 205-15 Insert Bearing
HC 205-16 1"
$7.80
HC 205-16 Insert Bearing
HC 206-17 1-1/16" 2-7/16"
62mm
1-29/32" 1-7/16" 3/4" 23/32" 1-3/4" 5/8" 0.236 5/16"-24
UNF
$9.15
HC 206-17 Insert Bearing
HC 206-18 1-1/8"
$9.15
HC 206-18 Insert Bearing
HC 206-19 1-3/16"
$9.15
HC 206-19 Insert Bearing
HC 206-20 1-1/4"
$9.15
HC 206-20 Insert Bearing
HC 207-20 1-1/4" 2-27/32"
72mm
2-1/64" 1-31/64" 25/32" 3/4" 2-3/16" 11/16" 0.256 5/16"-24
UNF
$11.15
HC 207-20 Insert Bearing
HC 207-21 1-5/16"
$11.15
HC 207-21 Insert Bearing
HC 207-22 1-3/8"
$11.15
HC 207-22 Insert Bearing
HC 207-23 1-7/16"
$11.15
HC 207-23 Insert Bearing
HC 208-24 1-1/2" 3-5/32"
80mm
2-7/32" 1-11/16" 13/16" 27/32" 2-3/8" 23/32" 0.256 5/16"-24
UNF
$12.70
HC 208-24 Insert Bearing
HC 208-25 1-9/16"
$12.70
HC 208-25 Insert Bearing
HC 209-26 1-5/8" 3-11/32"
85mm
2-7/32" 1-11/16" 7/8" 27/32" 2-1/2" 23/32" 0.256 5/16"-24
UNF
$16.00
HC 209-26 Insert Bearing
HC 209-27 1-11/16"
$16.00
HC 209-27 Insert Bearing
HC 209-28 1-3/4"
$16.00
HC 209-28 Insert Bearing
HC 210-30 1-7/8" 3-35/64"
90mm
2-15/32" 1-15/16" 15/16" 31/32" 2-3/4" 23/32" 0.256 5/16"-24
UNF
$19.80
HC 210-30 Insert Bearing
HC 210-31 1-15/16"
$19.80
HC 210-31 Insert Bearing
HC 210-32 2"
$19.80
HC 210-32 Insert Bearing
HC 211-32 2" 3-15/16"
100mm
2-13/16" 2-3/16" 31/32" 1-3/32" 3" 25/32" 5/16" 3/8"-24
UNF
$24.50
HC 211-32 Insert Bearing
HC 211-34 2-1/8"
$24.50
HC 211-34 Insert Bearing
HC 211-35 2-3/16"
$24.50
HC211-35 Insert Bearing
HC 212-36 2-1/4" 4-11/32"
110mm
3-1/16" 2-7/16" 1-1/16" 1-7/32" 3-5/16" 7/8" 5/16" 3/8"-24
UNF
$28.98
HC 212-36 Insert Bearing
HC 212-38 2-3/8"
$28.98
HC 212-38 Insert Bearing
HC 212-39 2-7/16"
$28.98
HC 212-39 Insert Bearing
HC 213-40 2-1/2" 4-23/32"
120mm
3-3/8" 2-11/16" 1-3/32" 1-11/32" 3-25/64" 59/64" 0.335 3/8"-24
UNF
$37.56
HC 213-40 Insert Bearing
HC 214-43 2-11/16" 4-29/32"
125mm
3-3/8" 2-11/16" 1-3/16" 1-11/32" 3-13/16" 59/64" 0.335 3/8"-24
UNF
$44.25
HC 214-43 Insert Bearing
HC 214-44 2-3/4"
$44.25
HC 214-44 Insert Bearing
HC 215-47 2-15/16" 5-1/8"
130mm
3-5/8" 2-15/16" 1-3/16" 1-15/32" 4-1/64" 59/64" 0.335 3/8"-24
UNF
$50.45
HC 215-47 Insert Bearing
HC 215-48 3"
$50.45
HC 215-48 Insert Bearing
Dimensional Download   HC.pdf
