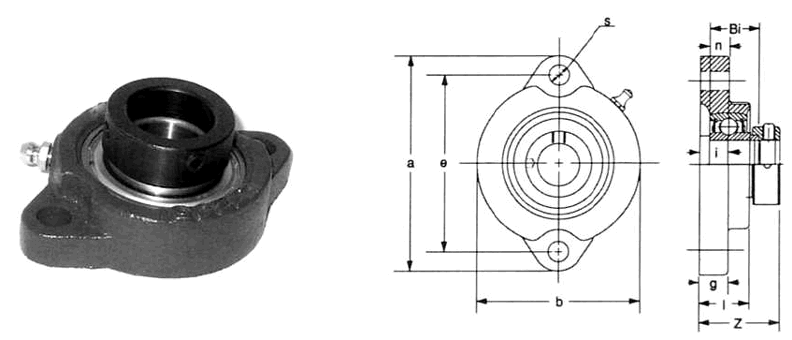

Unit
Number |
Shaft
Size |
a |
e |
i |
g |
l |
s |
b |
z |
Bi |
n |
Bolt Size |
|
|
SALF 201-8 |
1/2" |
3-3/16" |
2-1/2" |
3/8" |
3/8" |
23/32" |
5/16" |
2-7/32" |
1-17/64" |
1.126 |
0.236 |
1/4" |
|
|
SALF 202-10 |
5/8" |
|
|
SALF 204-12 |
3/4" |
3-35/64" |
2-13/16" |
7/16" |
7/16" |
25/32" |
13/32" |
2-13/32" |
1-3/8" |
1.220 |
0.276 |
5/16" |
|
|
SALF 205-14 |
7/8" |
3-3/4" |
2-63/64" |
7/16" |
7/16" |
25/32" |
13/32" |
2-33/64" |
1-23/64" |
1.220 |
0.295 |
5/16" |
|
|
SALF 205-15 |
15/16" |
|
|
SALF 205-16 |
1" |
|
|
SALF 206-17 |
1-1/16" |
4-7/16" |
3-9/16" |
15/32" |
15/32" |
7/8" |
15/32" |
2-63/64" |
1-9/16" |
1.406 |
0.315 |
3/8" |
|
|
SALF 206-18 |
1-1/8" |
|
|
SALF 206-19 |
1-3/16" |
|
|
SALF 206-20 |
1-1/4" |
|
|
SALF 207-20 |
1-1/4" |
4-13/16" |
3-15/16" |
1/2" |
1/2" |
15/16" |
15/32" |
3-1/2" |
1-23/32" |
1.531 |
0.335 |
3/8" |
|
|
SALF 207-21 |
1-5/16" |
|
|
SALF 207-22 |
1-3/8" |
|
|
SALF 207-23 |
1-7/16" |
|
