SAFL
Light Duty
Narrow Inner Race
Eccentric Collar Locking
|
2-Bolt Flange |
|
|
SAFL
|
| SAFL 200 Series -
2-Bolt Flange Light Duty - Narrow Inner Race - Eccentric Collar Locking |
 |
| Dimensions inch |  |
| Unit Number |
Shaft Dia. |

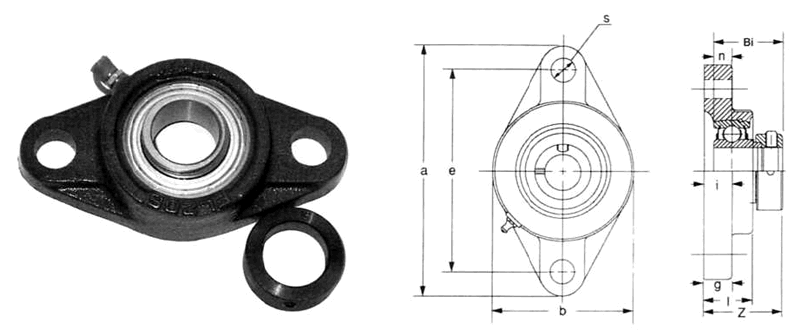

a | e | i | g | l | s | b | z | Bi | n |
Bolt Size |
|
| SAFL 201-8 | 1/2" | 3-57/64" | 2-63/64" | 1/2" | 13/32" | 7/8" | 15/32" | 2-1/8" | 1-13/32" | 1.126 | 0.236 | 3/8" | |
| SAFL 202-10 | 5/8" | ||||||||||||
| SAFL 204-12 | 3/4" | 4-7/16" | 3-35/64" | 19/32" | 7/16" | 1" | 15/32" | 2-3/8" | 1-17/32" | 1.220 | 0.276 | 3/8" | |
| SAFL 205-14 | 7/8" | 5-1/8" | 3-57/64" | 5/8" | 1/2" | 1-1/16" | 5/8" | 2-11/16" | 1-9/16" | 1.220 | 0.295 | 1/2" | |
| SAFL 205-15 | 15/16" | ||||||||||||
| SAFL 205-16 | 1" | ||||||||||||
| SAFL 206-17 | 1-1/16" | 5-13/16" | 4-19/32" | 23/32" | 1/2" | 1-1/4" | 5/8" | 3-5/32" | 1-51/64" | 1.406 | 0.315 | 1/2" | |
| SAFL 206-18 | 1-1/8" | ||||||||||||
| SAFL 206-19 | 1-3/16" | ||||||||||||
| SAFL 206-20 | 1-1/4" | ||||||||||||
| SAFL 207-20 | 1-1/4" | 6-11/32" | 5-1/8" | 3/4" | 19/32" | 1-11/32" | 5/8" | 3-35/64" | 1-15/16" | 1.531 | 0.335 | 1/2" | |
| SAFL 207-21 | 1-5/16" | ||||||||||||
| SAFL 207-22 | 1-3/8" | ||||||||||||
| SAFL 207-23 | 1-7/16" | ||||||||||||
| SAFL 208-24 | 1-1/2" | 6-7/8" | 5-11/16" | 13/16" | 19/32" | 1-13/32" | 5/8" | 3-15/16" | 2-3/16" | 1.720 | 0.354 | 1/2" | |
| SAFL 208-25 | 1-9/16" | ||||||||||||
| SAFL 209-26 | 1-5/8" | 7-13/32" | 5-13/16" | 7/8" | 5/8" | 1-1/2" | 3/4" | 4-1/4" | 2-7/32" | 1.720 | 0.374 | 5/8" | |
| SAFL 209-27 | 1-11/16" | ||||||||||||
| SAFL 209-28 | 1-3/4" | ||||||||||||
| SAFL 210-30 | 1-7/8" | 7-3/4" | 6-3/16" | 7/8" | 5/8" | 1-9/16" | 3/4" | 4-9/16" | 2-3/16" | 1.720 | 0.394 | 5/8" | |
| SAFL 210-31 | 1-15/16" | ||||||||||||
| SAFL 210-32 | 2" |
 |
