	SAST Normal Duty Eccentric Collar Locking Wide Slot

Home

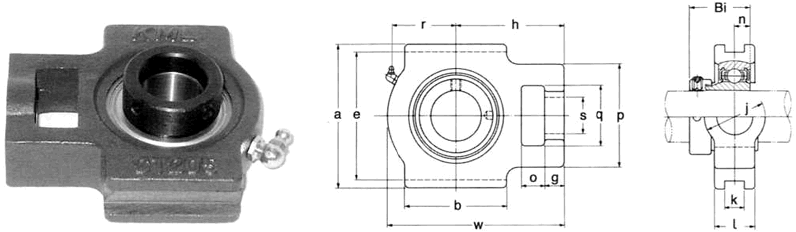

SAST 200 Series - Take-Up Units
Normal Duty - Wide Inner Race - Eccentric Collar Locking - Wide Slot

Dimensions inch

Bearing
Number

Shaft
Dia.

o

g

p

q

s

b

k

e

a

W

l

j

r

h

Bi

n

SAST 204-12

3/4"

5/8"

13/32"

2"

1-1/4"

3/4"

2"

17/32"

3"

3-1/2"

3-11/16"

13/16"

1-1/4"

1-19/64"

2-13/32"

1.220

0.276

SAST 205-14

7/8"

5/8"

13/32"

2"

1-1/4"

3/4"

2"

17/32"

3"

3-1/2"

3-13/16"

15/16"

1-1/4"

1-3/8"

2-7/16"

1.220

0.295

SAST 205-15

15/16"

SAST 205-16

1"

SAST 206-17

1-1/16"

5/8"

13/32"

2-7/32"

1-29/64"

7/8"

2-1/4"

17/32"

3-1/2"

4-1/64"

4-7/16"

1-3/32"

1-29/64"

1-11/16"

2-3/4"

1.406

0.315

SAST 206-18

1-1/8"

SAST 206-19

1-3/8"

SAST 206-20

1-1/4"

SAST 207-20

1-1/4"

5/8"

1/2"

2-33/64"

1-29/64"

7/8"

2-33/64"

17/32"

3-1/2"

4-1/64"

5-5/64"

1-3/16"

1-29/64"

2"

3-5/64"

1.531

0.335

SAST 207-21

1-5/16"

SAST 207-22

1-3/8"

SAST 207-23

1-7/16"

SAST 208-24

1-1/2"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-9/32"

11/16"

4-1/64"

4-1/2"

5-11/16"

1-19/64"

1-59/64"

2-7/32"

3-15/32"

1.720

0.354

SAST 208-25

1-9/16"

SAST 209-26

1-5/8"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-9/32"

11/16"

4-1/64"

4-19/32"

5-23/32"

1-3/8"

1-59/64"

2-1/4"

3-15/32"

1.720

0.374

SAST 209-27

1-11/16"

SAST 209-28

1-3/4"

SAST 210-30

1-7/8"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-25/64"

11/16"

4-1/64"

4-19/32"

5-15/16"

1-29/64"

1-59/64"

2-21/64"

3-5/8"

1.720

0.394

SAST 210-31

1-15/16"

SAST 210-32

2"
