UCFA
Normal Duty
Wide Inner Race
Set Screw Locking
|
Adjustable |
|
|
UCFA
|

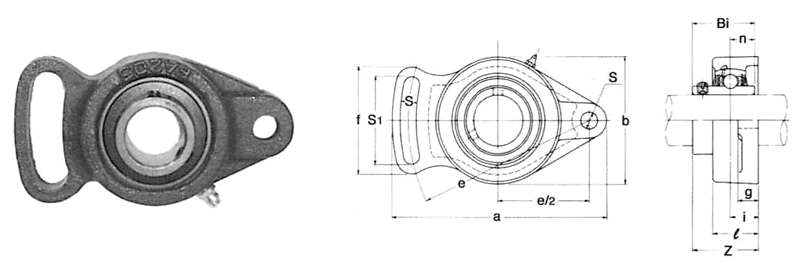

| UCFA 200 Series
- Adjustable Flange Normal Duty - Wide Inner Race - Set Screw Locking |
 |
| Dimensions inch |  |
|
Unit Number |
Shaft Dia. |
a | e | i | g | ( | s | S1 | b | f | Z | Bi | n |
Bolt Size |
|
| UCFA 201-8 | 1/2" | 3-27/32" | 3-1/16" | 19/32" | 15/32" | 1" | 25/64" | 1-9/16" | 2-3/8" | 1-31/32" | 1-5/16" | 1.2205 | 0.500 | 5/16" | |
| UCFA 202-10 | 5/8" | ||||||||||||||
| UCFA 204-12 | 3/4" | ||||||||||||||
| UCFA 205-14 | 7/8" | 4-7/8" | 3-25/32" | 19/32" | 9/16" | 1-1/32" | 33/64" | 1-15/16" | 2-3/4" | 2-17/32" | 1-23/64" | 1.3386 | 0.563 | 3/8" | |
| UCFA 205-15 | 15/16" | ||||||||||||||
| UCFA 205-16 | 1" | ||||||||||||||
| UCFA 206-17 | 1-1/16" | 5-9/16" | 4-17/32" | 45/64" | 9/16" | 1-7/32" | 33/64" | 2-3/32" | 3-5/32" | 2-11/16" | 1-37/64" | 1.500 | 0.626 | 3/8" | |
| UCFA 206-18 | 1-1/8" | ||||||||||||||
| UCFA 206-19 | 1-3/16" | ||||||||||||||
| UCFA 206-20 | 1-1/4" | ||||||||||||||
| UCFA 207-20 | 1-1/4" | 6-3/32" | 5-1/32" | 25/32" | 5/8" | 1-11/32" | 19/32" | 2-3/8" | 3-17/32" | 2-15/16" | 1-25/32" | 1.689 | 0.689 | 7/16" | |
| UCFA 207-21 | 1-5/16" | ||||||||||||||
| UCFA 207-22 | 1-3/8" | ||||||||||||||
| UCFA 207-23 | 1-7/16" | ||||||||||||||
| UCFA 208-24 | 1-1/2" | 6-23/32" | 5-19/32" | 55/64" | 5/8" | 1-13/32" | 19/32" | 2-23/32" | 3-15/16" | 3-5/16" | 2-1/16" | 1.937 | 0.748 | 1/2" | |
| UCFA 208-25 | 1-9/16" | ||||||||||||||
| UCFA 209-26 | 1-5/8" | 7-1/16" | 5-3/4" | 55/64" | 23/32" | 1-1/2" | 43/64" | 2-27/32" | 4-11/32" | 3-15/32" | 2-1/16" | 1.937 | 0.748 | 1/2" | |
| UCFA 209-27 | 1-11/16" | ||||||||||||||
| UCFA 209-28 | 1-3/4" | ||||||||||||||
| UCFA 210-30 | 1-7/8" | 7-7/16" | 6-3/32" | 55/64" | 23/32" | 1-9/16" | 43/64" | 2-15/16" | 4-17/32" | 3-5/8" | 2-5/32" | 2.0315 | 0.748 | 1/2" | |
| UCFA 210-31 | 1-15/16" | ||||||||||||||
| UCFA 210-32 | 2" |
 |
Dimensional Download | |
UCFA.pdf |
