 UC 200 Series - Insert Bearings
 Normal Duty  -  Wide Inner Race  -  Set Screw Locking

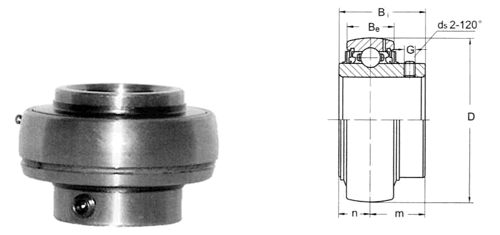

  Dimensions        inch / metric UC Deminsional Information
Bearing Number Shaft
Dia.		 D Bi Be n m G ds
UC 201-8 1/2" 1-27/32"
47mm		 1-1/4" 5/8" 1/2" 23/32" 0.197 1/4"-28
UNF
$5.36
UC 201-8 Insert Bearing
UC 202-10 5/8"
$5.36
UC 202-10 Insert Bearing
UC 204-12 3/4"
$5.56
UC 204-12 Insert Bearing
UC 205-14 7/8" 2-1/16"
52mm		 1-11/32" 21/32" 9/16" 25/32" 0.216 1/4"-28
UNF
$6.67
UC 205-14 Insert Bearing
UC 205-15 15/16"
$6.67
UC 205-15 Insert Bearing
UC 205-16 1"
$6.15
UC 205-16 Insert Bearing
UC 206-17 1-1/16" 2-7/16"
62mm		 1-1/2" 3/4" 5/8" 7/8" 1/4" 1/4"-28
UNF
$8.00
UC 207-17 Insert Bearing
UC 206-18 1-1/8"
$8.00
UC 206-18 Insert Bearing
UC 206-19 1-3/16"
$8.00
UC 206-19 Insert Bearing
UC 206-20 1-1/4"
$8.00
UC 206-20 Insert Bearing
UC 207-20 1-1/4" 2-27/32"
72mm		 1-11/16" 25/32" 11/16" 1" 0.256 5/16"-24
UNF
$10.00
UC 207-20 Insert Bearing
UC 207-21 1-5/16"
$10.00
UC 207-21 Insert Bearing
UC 207-22 1-3/8"
$10.00
UC 207-22 Insert Bearing
UC 207-23 1-7/16"
$10.00
UC 207-23 Insert Bearing
UC 208-24 1-1/2" 3-5/32"
80mm		 1-15/16" 13/16" 3/4" 1-3/16" 5/16" 5/16"-24
UNF
$11.56
UC 208-24 Insert Bearing
UC 208-25 1-9/16"
$11.56
UC 208-25 Insert Bearing
UC 209-26 1-5/8" 3-11/32"
85mm		 1-15/16" 7/8" 3/4" 1-3/16" 5/16" 5/16"-24
UNF
$13.13
UC 209-26 Insert Bearing
UC 209-27 1-11/16"
$13.13
UC 209-27 Insert Bearing
UC 209-28 1-3/4"
$13.13
UC 209-28 Insert Bearing
UC 210-30 1-7/8" 3-35/64"
90mm		 2-1/32" 15/16" 3/4" 1-9/32" 11/32" 3/8"-24
UNF
$14.67
UC 210-30 Insert Bearing
UC 210-31 1-15/16"
$14.67
UC 210-31 Insert Bearing
UC 210-32 2"
$14.67
UC 210-32 Insert Bearing
UC 211-32 2" 3-15/16"
100mm		 2-3/16" 31/32" 7/8" 1-5/16" 11/32" 3/8"-24
UNF
$18.23
UC 211-32 Insert Bearing
UC 211-34 2-1/8"
$18.23
UC 211-34 Insert Bearing
UC 211-35 2-3/16"
$16.40
UC 211-35 Insert Bearing
UC 212-36 2-1/4" 4-11/32"
110mm		 2-9/16" 1-1/16" 1" 1-9/16" 27/64" 3/8"-24
UNF
$21.80
UC 212-36 Insert Bearing
UC 212-38 2-3/8"
$21.80
UC 212-38 Insert Bearing
UC 212-39 2-7/16"
$21.80
UC 212-39 Insert Bearing
UC 213-40 2-1/2" 4-23/32"
120mm		 2-9/16" 1-3/32" 1" 1-9/16" 15/32" 3/8"-24
UNF
$28.60
UC 213-40 Insert Bearing
UC 214-43 2-11/16" 4-29/32"
125mm		 2-15/16" 1-3/16" 1-3/16" 1-3/4" 15/32" 7/16"-20
UNF
$33.60
UC 214-43 Insert Bearing
UC 214-44 2-3/4"
$33.60
UC 214-44 Insert Bearing
UC 215-47 2-15/16" 5-1/8"
130mm		 3-1/16" 1-3/16" 1-5/16" 1-3/4" 15/32" 7/16"-20
UNF
$40.40
UC 215-47 Insert Bearing
UC 215-48 3"
$40.40
UC 215-48 Insert Bearing
Dimensional Download   UC.pdf
