SER
Normal Duty
Cylindrical O.D.
Snap Ring
|
Insert Bearings |
|
|
SER
|
| SER 200 Series
- Insert Bearings Normal Duty - Wide Inner Race - Set Screw Locking - Cylindrical O.D. - Snap Ring |
|
|
| Dimensions inch / metric |  |
|
Bearing Number |
Shaft Dia. |

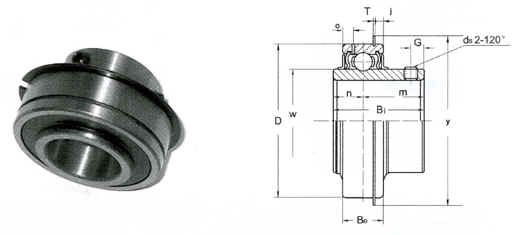

D | Bi | Be | n | m | W | o | T | j | G | ds | Y | |
| SER 201 -8 | 1/2" |
1-27/32" 47mm |
1-1/4" | 5/8" | 29/64" | 49/64" | 1-1/8" | 0.157 | 0.053 | 0.097 | 0.197 |
1/4"-28 UNF |
2-5/64" | |
| SER 202-10 | 5/8" | |||||||||||||
| SER 204-12 | 3/4" | |||||||||||||
| SER 205-14 | 7/8" |
2-1/16" 52mm |
1-3/8" | 3/4" | 33/64" | 55/64" | 1-11/32" | 0.205 | 0.053 | 0.097 | 0.220 |
1/4"-28 UNF |
2-9/32" | |
| SER 205-15 | 15/16" | |||||||||||||
| SER 205-16 | 1" | |||||||||||||
| SER 206-17 | 1-1/16" |
2-7/16" 62mm |
1-1/2" | 7/8" | 5/8" | 7/8" | 1-19/32" | 0.220 | 0.075 | 1/8" | 0200 |
1/4"-28 UNF |
2-21/32" | |
| SER 206-18 | 1-1/8" | |||||||||||||
| SER 206-19 | 1-3/16" | |||||||||||||
| SER 206-20 | 1-1/4" | |||||||||||||
| SER 207-20 | 1-1/4" |
2-27/32" 72mm |
1-11/16" | 15/16" | 11/16" | 1" | 1-27/32" | 0.220 | 0.075 | 1/8" | 1/4" |
5/16"-24 UNF |
3-3/32" | |
| SER 207-21 | 1-5/16" | |||||||||||||
| SER 207-22 | 1-3/8" | |||||||||||||
| SER 207-23 | 1-7/16" | |||||||||||||
| SER 208-24 | 1-1/2" |
3-5/32" 80mm |
1-15/16" | 1-3/32" | 3/4" | 1-3/16" | 2-1/16" | 1/4" | 0.075 | 1/8" | 5/16" |
5/16"-24 UNF |
3-13/32" | |
| SER 208-25 | 1-9/16" | |||||||||||||
| SER 209-26 | 1-5/8" |
3-11/32" 85mm |
1-15/16" | 1-3/32" | 3/4" | 1-3/16" | 2-17/64" | 1/4" | 0.075 | 1/8" | 5/16" |
3/8"-24 UNF |
3-39/64" | |
| SER 209-27 | 1-11/16" | |||||||||||||
| SER 209-28 | 1-3/4" | |||||||||||||
| SER 210-30 | 1-7/8" |
3-35/64" 90mm |
2-1/32" | 1-1/8" | 3/4" | 1-9/32" | 2-29/64" | 0.295 | 0.106 | 1/8" | 3/8" |
3/8"-24 UNF |
3-13/16" | |
| SER 210-31 | 1-15/16" | |||||||||||||
| SER 211-32 | 2" |
3-15/16" 100mm |
2-3/16" | 1-3/16" | 7/8" | 1-5/16" | 2-45/64" | 0.295 | 0.106 | 1/8" | 3/8" |
3/8"-24 UNF |
4-17/32" | |
| SER 211-34 | 2-1/8" | |||||||||||||
| SER 211-35 | 2-3/16" | |||||||||||||
| SER 212-36 | 2-1/4" |
4-11/32" 110mm |
2-9/16" | 1-1/4" | 1" | 1-9/16" | 3" | 0.295 | 0.106 | 1/8" | 7/16" |
3/8"-24 UNF |
4-15/32" | |
| SER 212-38 | 2-3/8" | |||||||||||||
| SER 212-39 | 2-7/16" | |||||||||||||
| SER 213-40 | 2-1/2" |
4-23/32" 120mm |
2-9/16" | 1-1/4" | 1" | 1-9/16" | 3-1/4" | 5/16" | 0.110 | 0.157 | 7/16" |
3/8"-24 UNF |
5-5/16" |
 |
Dimensional Download | |
SER.pdf |
