UCFCS
Normal Duty
Set Screw Locking
Wide Inner Race
|
4-Bolt Piloted Flange |
|
|

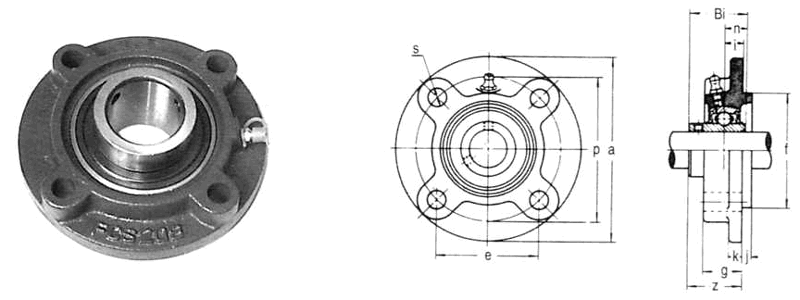

UCFCS
|
| UCFCS 200 Series
- 4-Bolt Piloted Flange Normal Duty - Wide Inner Race - Set Screw Locking |
 |
| Dimensions inch |  |
|
Unit Number |
Shaft Dia. |
a | p | e | i | s | j | k | g | f | z | Bi | n |
Bolt Size |
|
| UCFCS 206-17 | 1-1/16" | 4-3/8" | 3-5/8" | 2-9/16" | 13/32" | 13/32" | 1/4" | 3/8" | 15/16" | 3" | 1-17/64" | 1.500 | 0.626 | 5/16" | |
| UCFCS 206-18 | 1-1/8" | ||||||||||||||
| UCFCS 206-19 | 1-3/16" | ||||||||||||||
| UCFCS 206-20 | 1-1/4" | ||||||||||||||
| UCFCS 207-20 | 1-1/4" | 5" | 4-1/8" | 2-59/64" | 5/16" | 15/32" | 3/8" | 3/8" | 7/8" | 3-3/8" | 1-5/16" | 1.689 | 0.689 | 3/8" | |
| UCFCS 207-21 | 1-5/16" | ||||||||||||||
| UCFCS 207-22 | 1-3/8" | ||||||||||||||
| UCFCS 207-23 | 1-7/16" | ||||||||||||||
| UCFCS 208-24 | 1-1/2" | 5-1/4" | 4-3/8" | 3-3/32" | 11/32" | 15/32" | 7/16" | 7/16" | 1-1/32" | 3-5/8" | 1-35/64" | 1.937 | 0.748 | 3/8" | |
| UCFCS 208-25 | 1-9/16" | ||||||||||||||
| UCFCS 209-26 | 1-5/8" | 6-1/8" | 5-1/8" | 3-5/8" | 0.220 | 9/16" | 15/32" | 29/64" | 7/8" | 4-1/4" | 1-13/32" | 1.937 | 0.748 | 7/16" | |
| UCFCS 209-27 | 1-11/16" | ||||||||||||||
| UCFCS 209-28 | 1-3/4" | ||||||||||||||
| UCFCS 210-30 | 1-7/8" | 6-1/8" | 5-1/8" | 3-5/8" | 5/16" | 9/16" | 15/32" | 7/16" | 1" | 4-1/4" | 1-19/32" | 2.031 | 0.748 | 7/16" | |
| UCFCS 210-31 | 1-15/16" | ||||||||||||||
| UCFCS 210-32 | 2" | ||||||||||||||
| UCFCS 211-32 | 2" | 6-3/8" | 5-3/8" | 3-25/32" | 9/32" | 9/16" | 5/8" | 7/16" | 1" | 4-1/2" | 1-19/32" | 2.187 | 0.874 | 7/16" | |
| UCFCS 211-34 | 2-1/8" | ||||||||||||||
| UCFCS 211-35 | 2-3/16" | ||||||||||||||
| UCFCS 212-36 | 2-1/4" | 7-1/8" | 6" | 4-15/64" | 0.157 | 5/8" | 5/8" | 1/2" | 1" | 5-1/2" | 1-23/32" | 2.563 | 1.000 | 7/16" | |
| UCFCS 212-38 | 2-3/8" | ||||||||||||||
| UCFCS 212-39 | 2-7/16" |
 |
Dimensional Download | |
UCFCS.pdf |
