UCST Series Take-Up Units 1/2" to 3"-Bearing Outlet.com

	Take-Up Units
	UCST Normal Duty Set Screw Locking Wide Slot

Home

UCST 200 Series - Take-Up Units
Normal Duty - Wide Inner Race - Set Screw Locking - Wide Slot

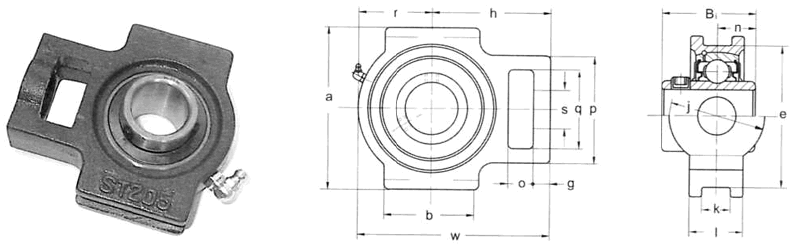

Dimensions inch

Unit
Number

Shaft
Dia.

o

g

p

q

s

b

k

e

a

w

l

j

r

h

Bi

n

UCST 201-8

1/2"

5/8"

13/32"

2"

1-1/4"

3/4"

2"

17/32"

3"

3-1/2"

3-11/16"

13/16"

1-1/4"

1-19/64"

2-13/32"

1.220

0.500

UCST 202-10

5/8"

UCST 204-12

3/4"

UCST 205-14

7/8"

5/8"

13/32"

2"

1-1/4"

3/4"

2"

17/32"

3"

3-1/2"

3-13/16"

15/16"

1-1/4"

1-3/8"

2-7/16"

1.339

0.563

UCST 205-15

15/16"

UCST 205-16

1"

UCST 206-17

1-1/16"

5/8"

13/32"

2-7/32"

1-29/64"

7/8"

2-1/4"

17/32"

3-1/2"

4-1/64"

4-7/16"

1-3/32"

1-29/64"

1-11/16"

2-3/4"

1.500

0.626

UCST 206-18

1-1/8"

UCST 206-19

1-3/16"

UCST 206-20

1-1/4"

UCST 207-20

1-1/4"

5/8"

1/2"

2-33/64"

1-29/64"

7/8"

2-33/64"

17/32"

3-1/2"

4-1/64"

5-5/64"

1-3/16"

1-29/64"

2"

3-5/64"

1.689

0.689

UCST 207-21

1-5/16

UCST 207-22

1-3/8"

UCST 207-23

1-7/16"

UCST 208-24

1-1/2"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-5/16"

11/16"

4-1/64"

4-1/2"

5-11/16"

1-19/64"

1-59/64"

2-7/32"

3-15/32"

1.937

0.748

UCST 208-25

1-9/16"

UCST 209-26

1-5/8"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-5/16"

11/16"

4-1/64"

4-19/32"

5-23/32"

1-3/8"

1-59/64"

2-1/4"

3-15/32"

1.937

0.748

UCST 209-27

1-11/16"

UCST 209-28

1-3/4"

UCST 210-30

1-7/8"

3/4"

5/8"

3-9/32"

1-59/64"

1-3/16"

3-25/64"

11/16"

4-1/64"

4-19/32"

5-15/16"

1-29/64"

1-59/64"

2-21/64"

3-5/8"

2.031

0.748

UCST 210-31

1-15/16"

UCST 210-32

2"

UCST 211-32

2"

31/32"

3/4"

4-1/64"

2-33/64"

1-3/8"

3-3/4"

7/8"

5-1/8"

5-3/4"

6-23/32"

1-1/2"

2-33/64"

2-9/16"

4-11/64"

2.187

0.874

UCST 211-34

2-1/8"

UCST 211-35

2-3/16"

UCST 212-36

2-1/4"

1-1/4"

3/4"

4-1/64"

2-33/64"

1-3/8"

4-1/64"

7/8"

5-1/8"

5-3/4"

7-5/8"

1-21/32"

2-33/64"

2-61/64"

4-11/16"

2.563

1"

UCST 212-37

UCST 212-38

2-3/8"

UCST 212-39

2-7/16"

UCST 213-40

2-1/2"

1-1/4"

3/4"

4-3/8"

2-3/4"

1-5/8"

4-49/64"

1-1/16"

5-15/16"

6-9/16"

8-13/16"

1-3/4"

2-3/4"

3-7/16"

5-25/64"

2.563

1"

1-1/4"

13/16"

4-3/8"

2-3/4"

1-5/8"

4-49/64"

1-1/16"

5-15/16"

6-9/16"

8-13/16"

1-13/16"

2-3/4"

3-7/16"

5-25/64"

2.937

1.189

UCST 214-43

2-11/16"

UCST 214-44

2-3/4"

UCST 215-45

1-1/4"

13/16"

4-3/8"

2-3/4"

1-5/8"

4-49/64"

1-1/16"

5-15/16"

6-9/16"

8-1/8"

1-7/8"

2-3/4"

3-5/8"

5-1/2"

3.063

1.311

UCST 215-46

UCST 215-47

2-15/16"

UCST 215-48

3"

Dimensional Download
